unusual chair photos(5different variation)

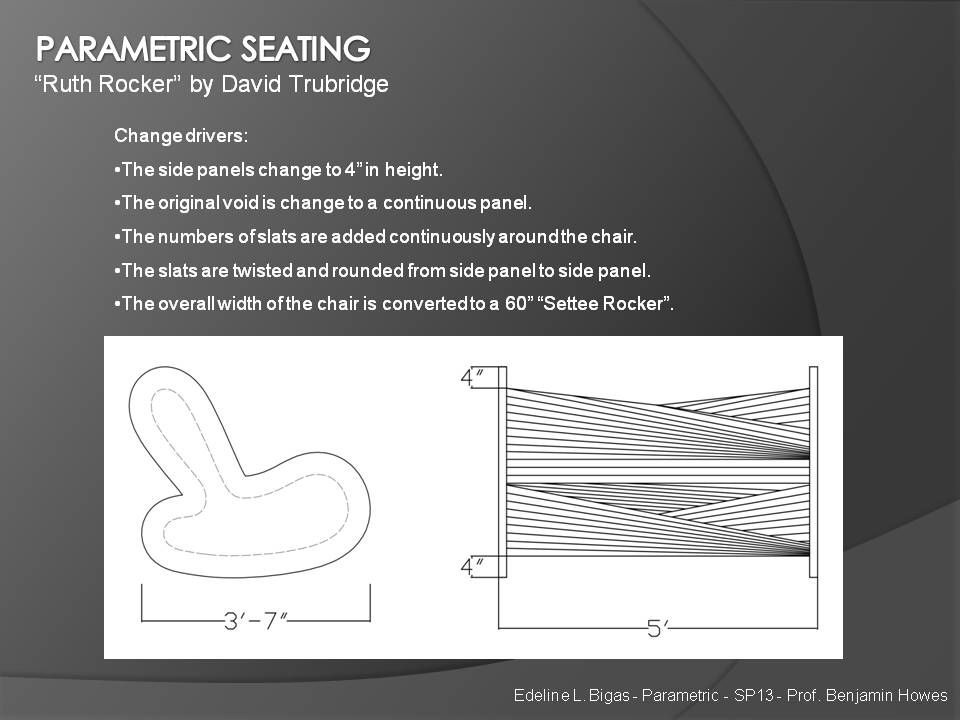

Here you can see the changes of the drivers in Grasshopper. Enjoy!

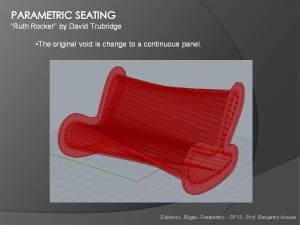

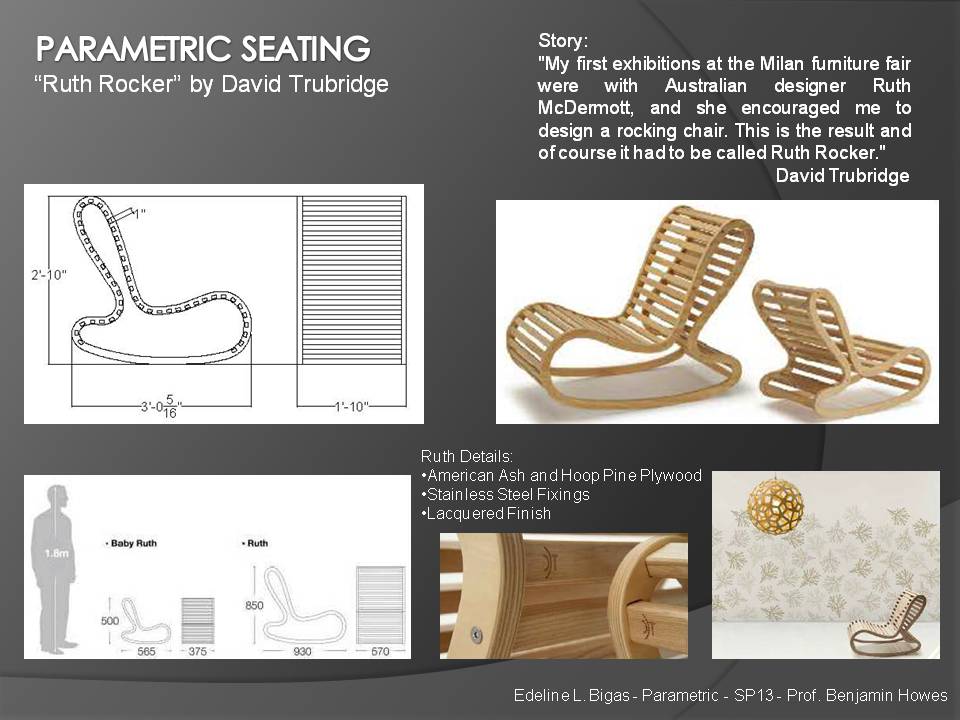

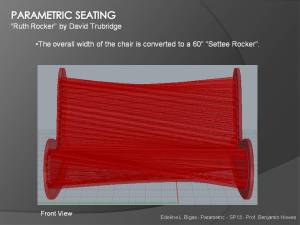

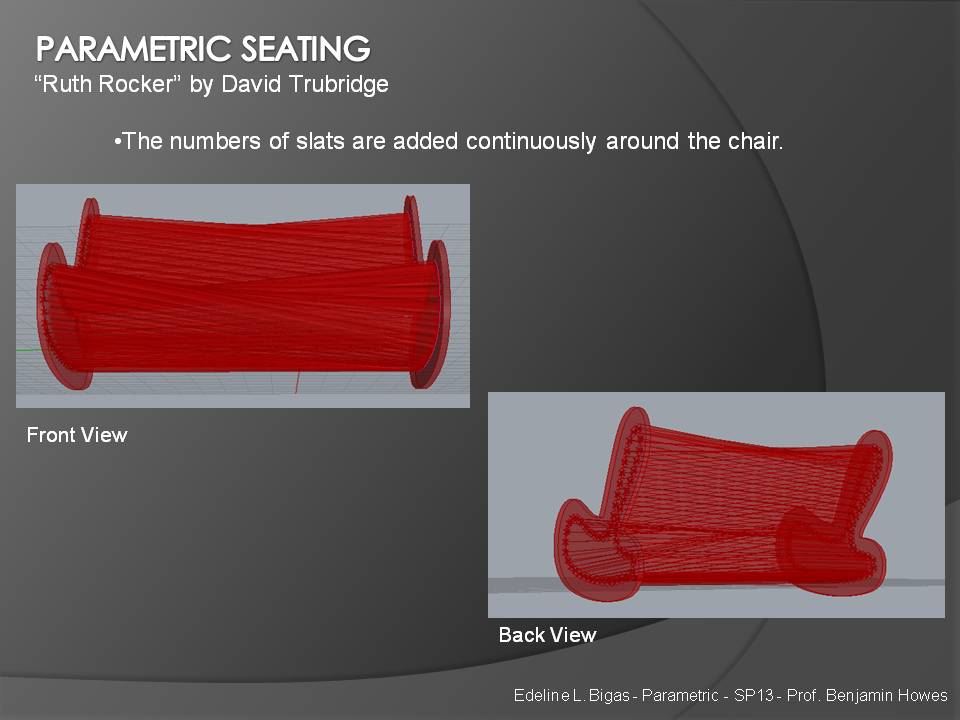

Here is my Parametric Seating Presentation. Enjoy!

Hello WordPress world, After quite some delay I am finally able to post on the class blog!

Barcelona Chair PresentationBarcelona Chair Presentation

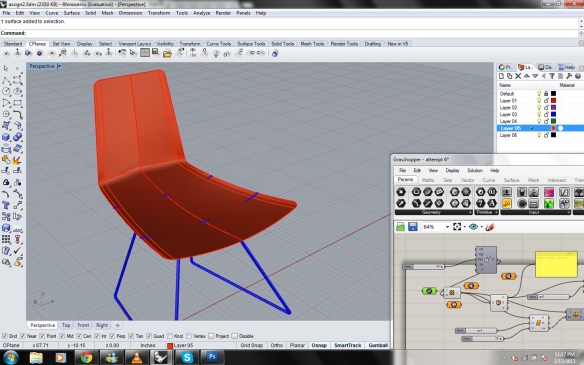

The curves were lofted to form a polysurface. When lofted in Rhino it generated several open polysurfaces instead of one single surface.

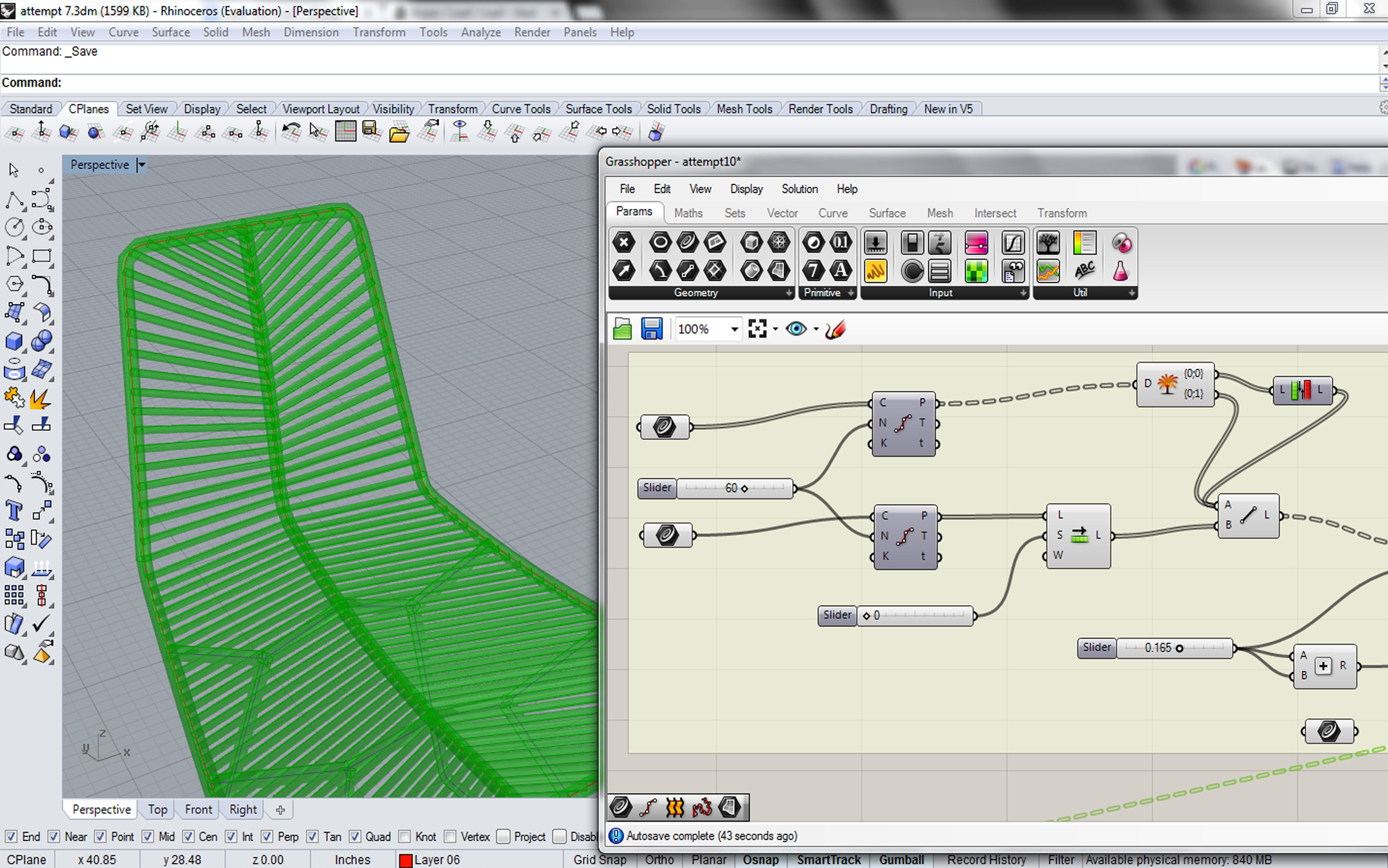

A single surface was generated by lofting the surfaces in grasshopper. Then iso-curve and pipe components were used to generate this iteration.

However it didnt work too well. Back to a framework of two 3 curves and definitions using line segment and pipe components.

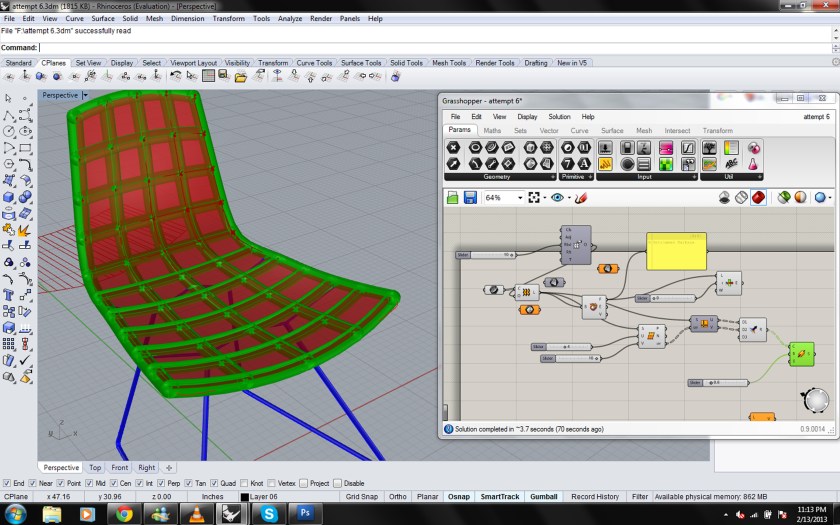

The number of spokes or ribs, their thickness, number and orientation are varied using sliders. The height and width of the seating is varied along the z axis.



Progress on the coconut chair– can’t tell if it’s a progress really, but everything is newly referenced to the points via Grasshopper. Due to its surprising complexity on the chair, I had to create new triangular surfaces, referenced that, and now I am trying to figure out the surface to move along with the commands created…wish me luck.
