INT731_03 Scarlet Liu_ Process
INT-731-03 _Ying Huang_Final project03
INT-731-03 _Ying Huang_Final project02

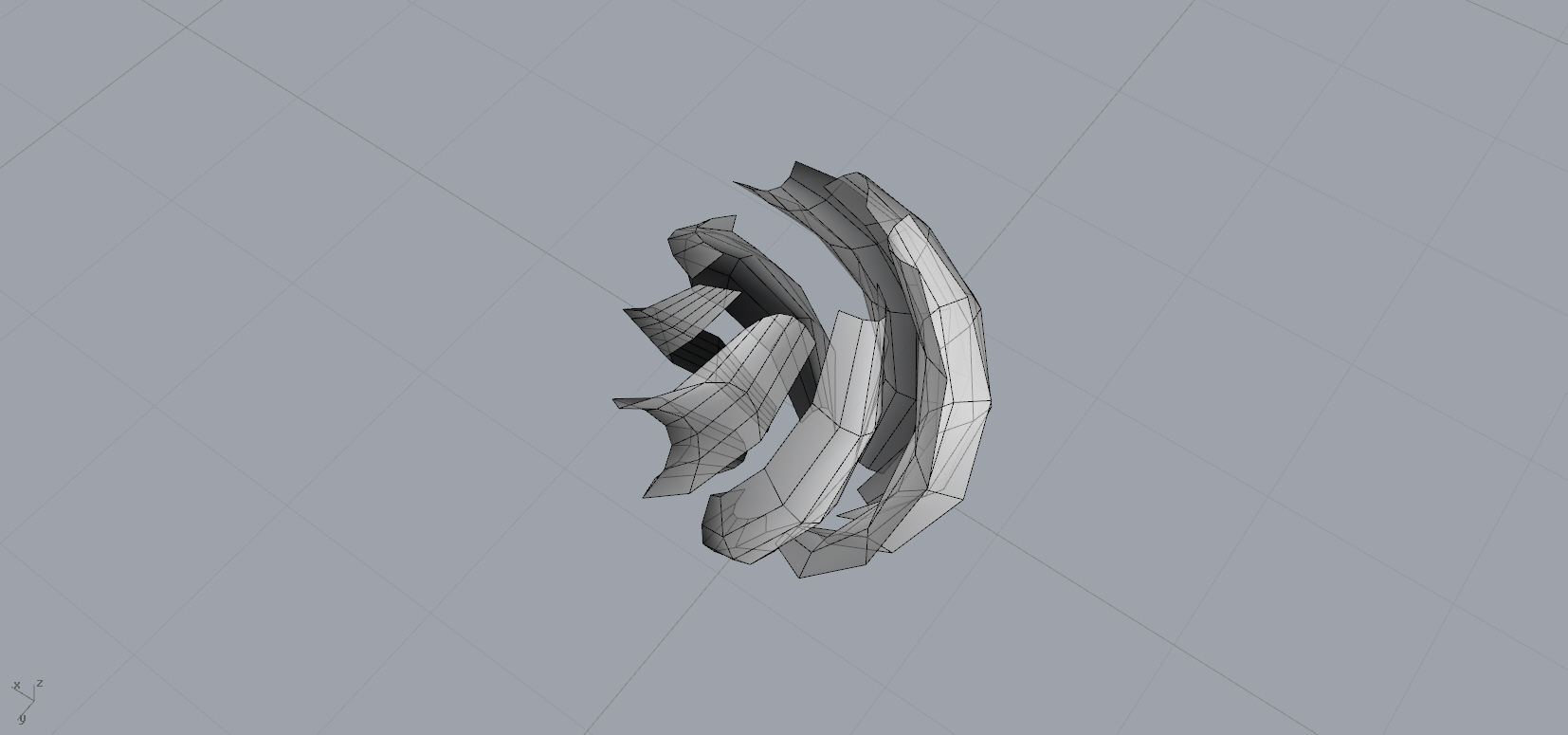

A good attempt, but unfortunately not printable because there are too manydetails. Moreover, it’s a jewelry so the size could not be too big.
I tried to change the scale but I only can change the frequency of the spiral shape, it still doesn’t work.

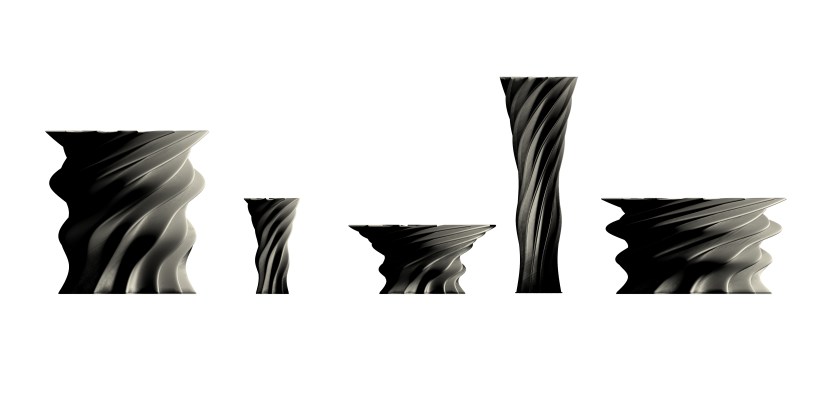

04/30 Product Family Progress – Chun-Wei Chen

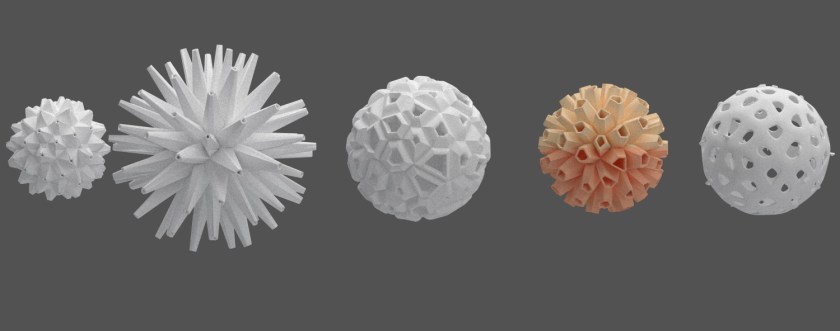

Progress on my Family
Progress _ Ziqian Wang
April 16 Progress – Chun-Wei Chen

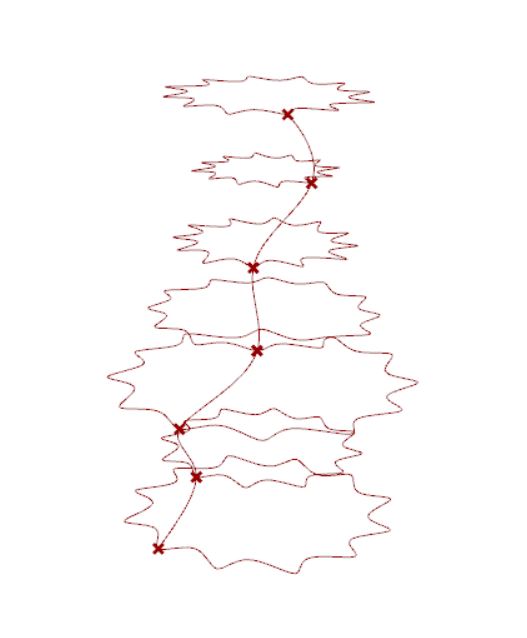

Ran into an issue: the top point does not follow the rotating direction.
Selection 1: Candle Cover

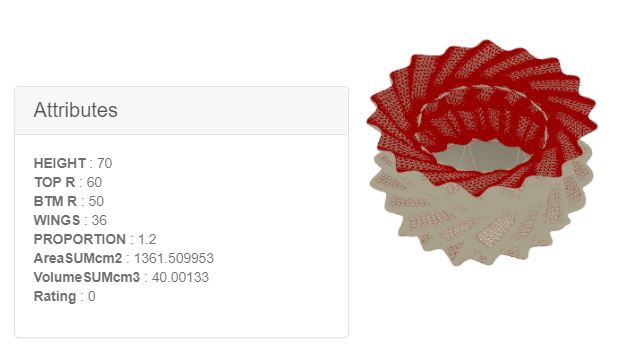

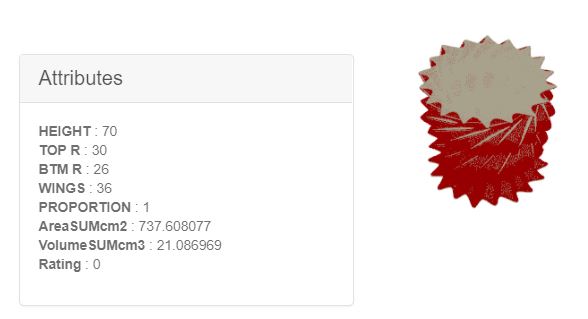

Selection 2: Candleholder

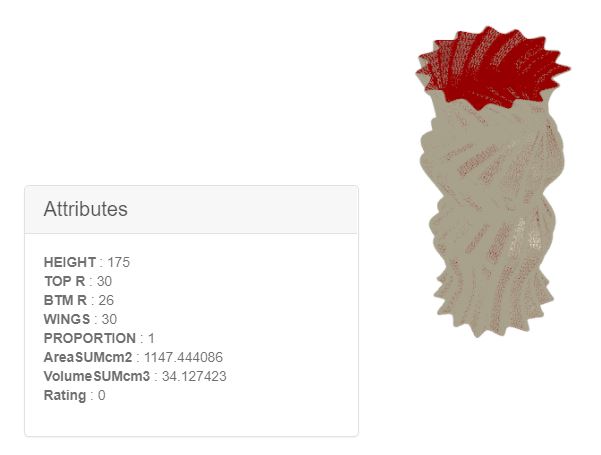

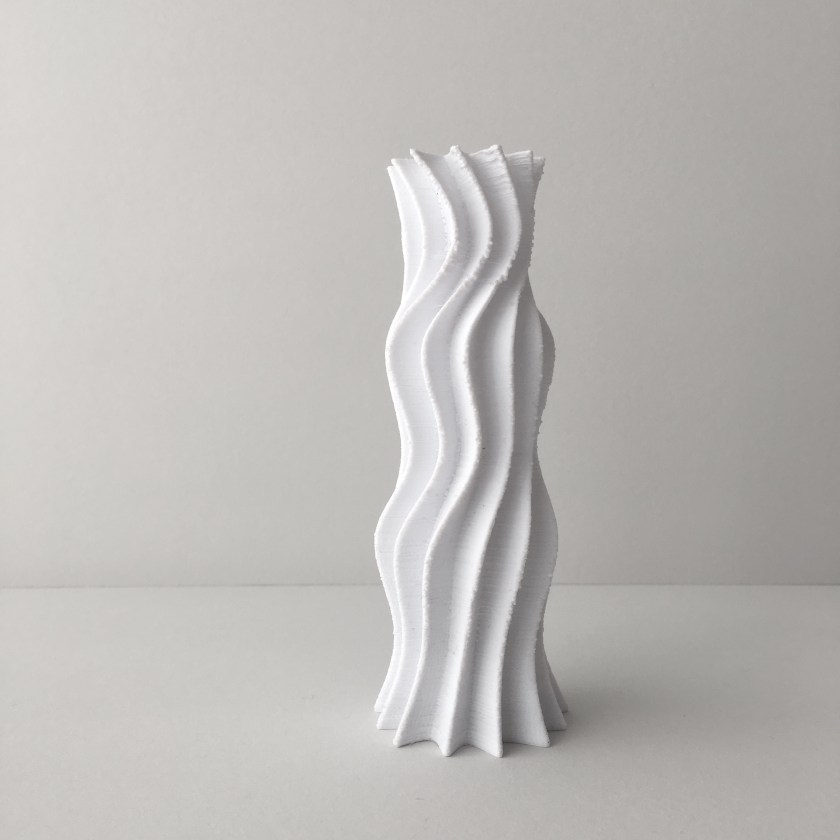

Selection 3: Vase

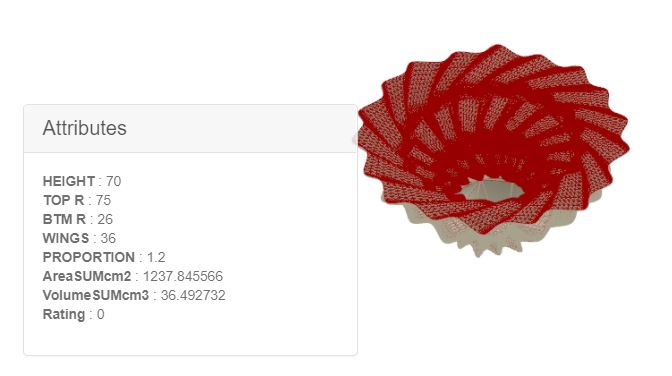

Selection 4: Fruit Bowl

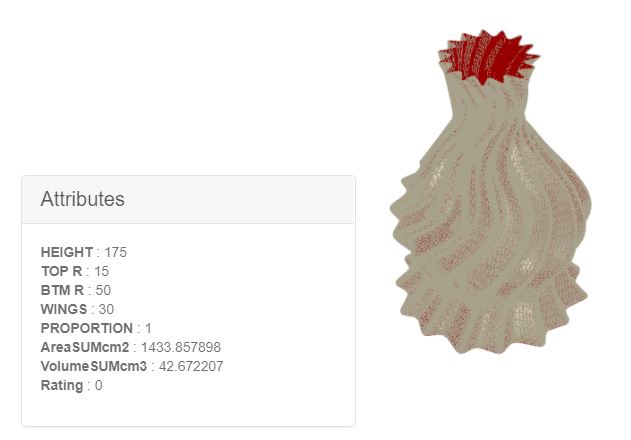

Selection 5: Suspended Lamp

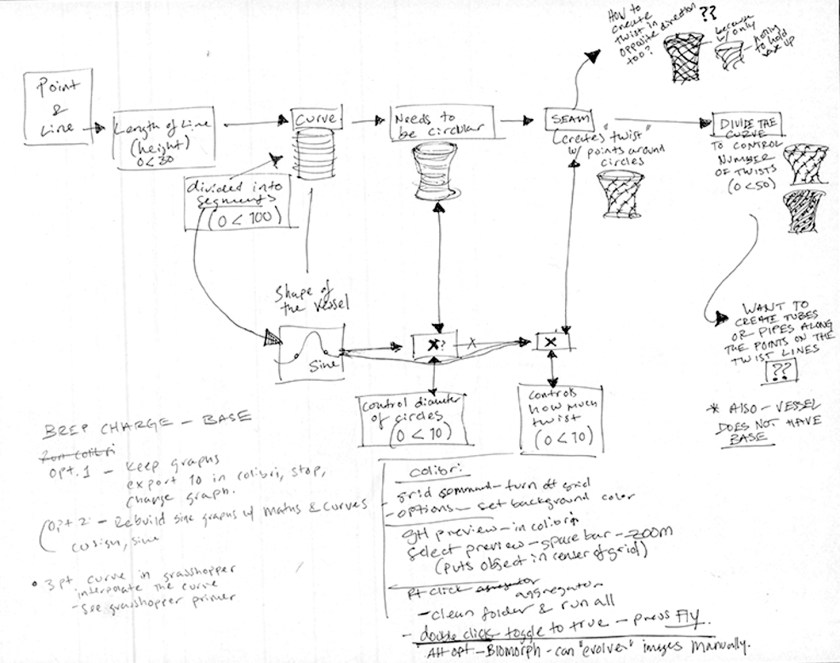

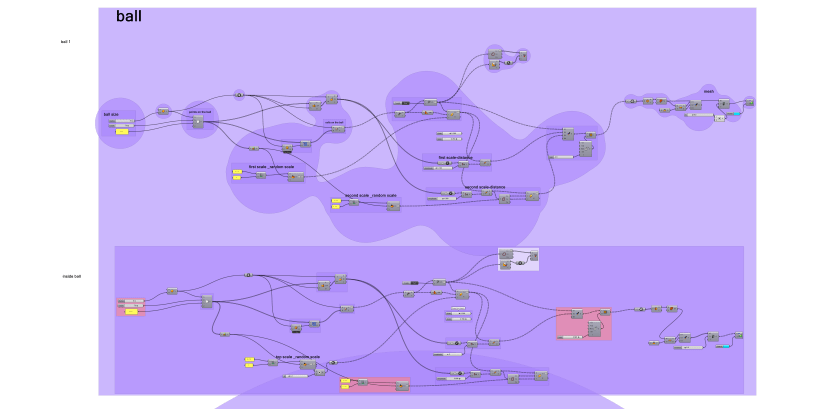

I began to write this definition by jotting down what I wanted to do then figuring out which components I could use to execute each step. I started with a line that is divided into segments. A circle is added at each of those points to create the vessel volume. A slider controls how many or those circles are visible to determine the height. I used a sine curve to control the shape of the vessel with two separate controls for the diameter of the circles and how much the vessel twists. I used the seam component to create and twist with points around each circle, and divided the curve to control the number of twists. At this point, the main question is how I can create the twist in the opposite direction too, because right now it is only in one direction and thus there is nothing connecting or supporting the curves.
