Family of Planters 3.0

Family of Planters is a parametrically designed line of planters.

Every plant has different sun or shading needs. People usually use half-shades and screens to protect outdoor plants as well as window pots. These elements are not always well designed, so I am proposing a system where the shade is incorporated to the planter. These products will accommodate 5 different shade requirements for various plant species.

Here you can watch the video of the grasshopper file definition and take a look at the presentation. Enjoy!

Aldana.-

Family of Products.005

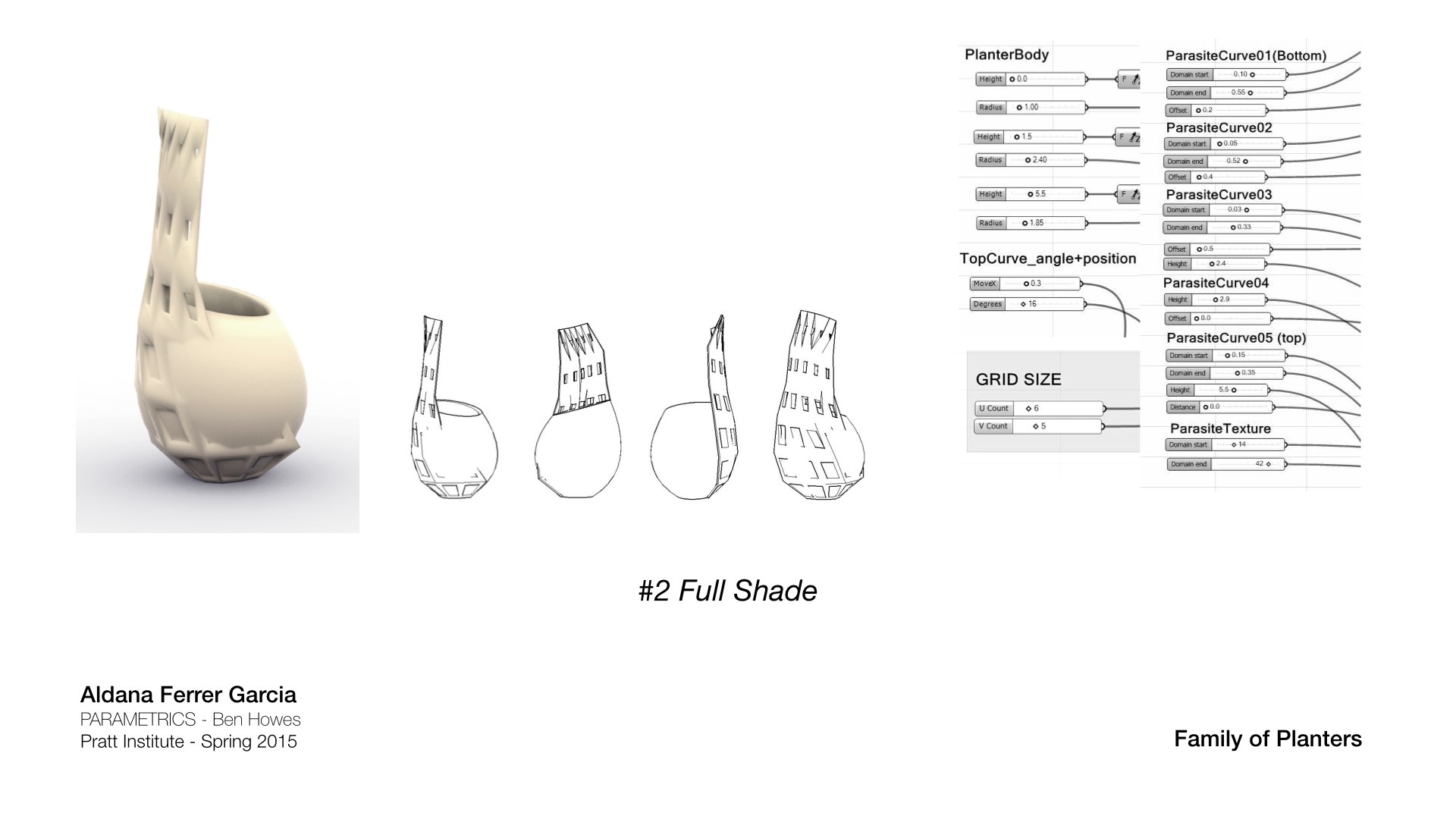

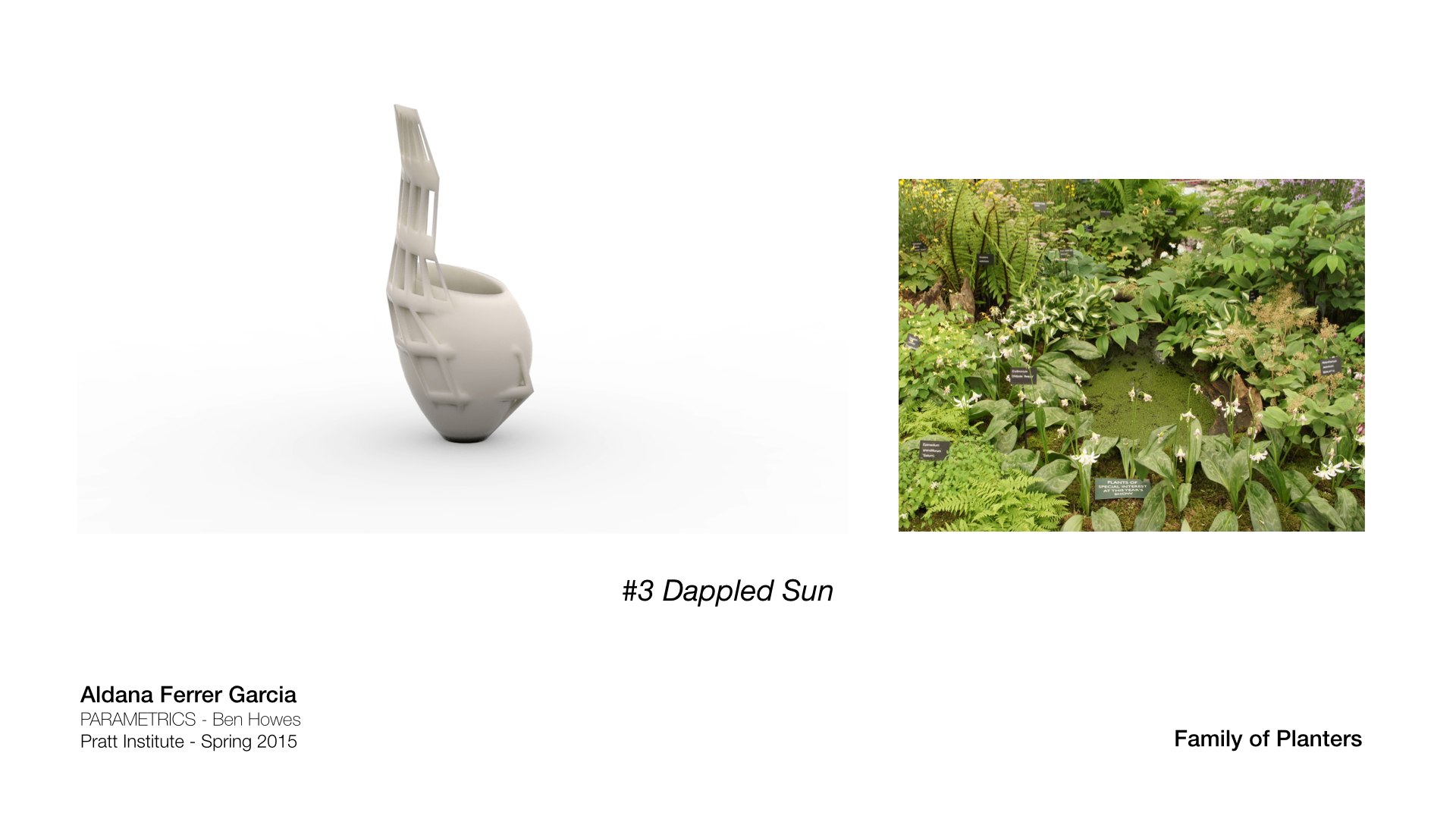

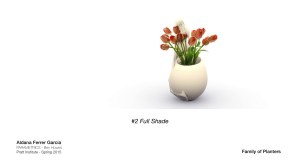

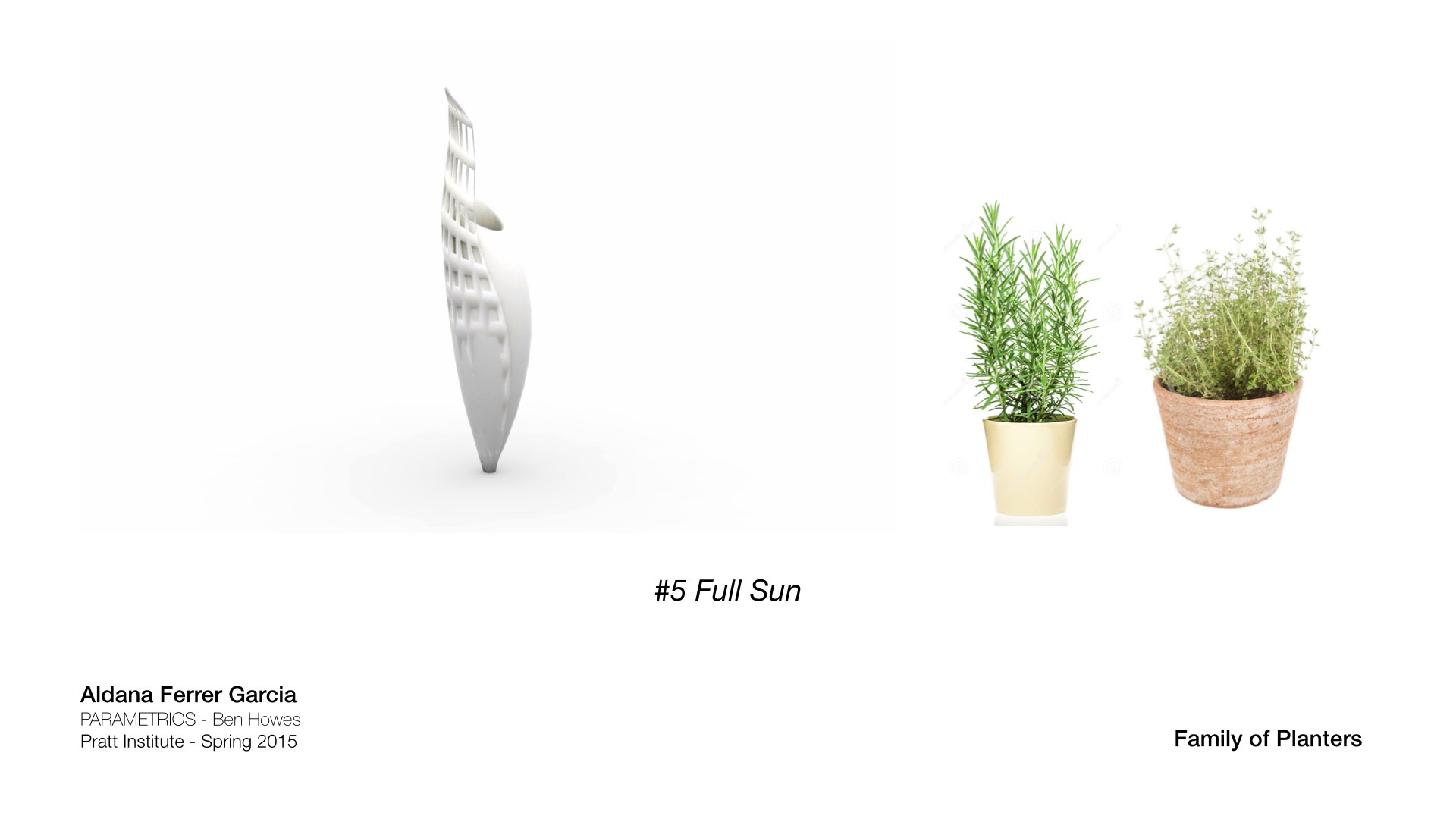

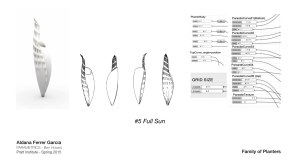

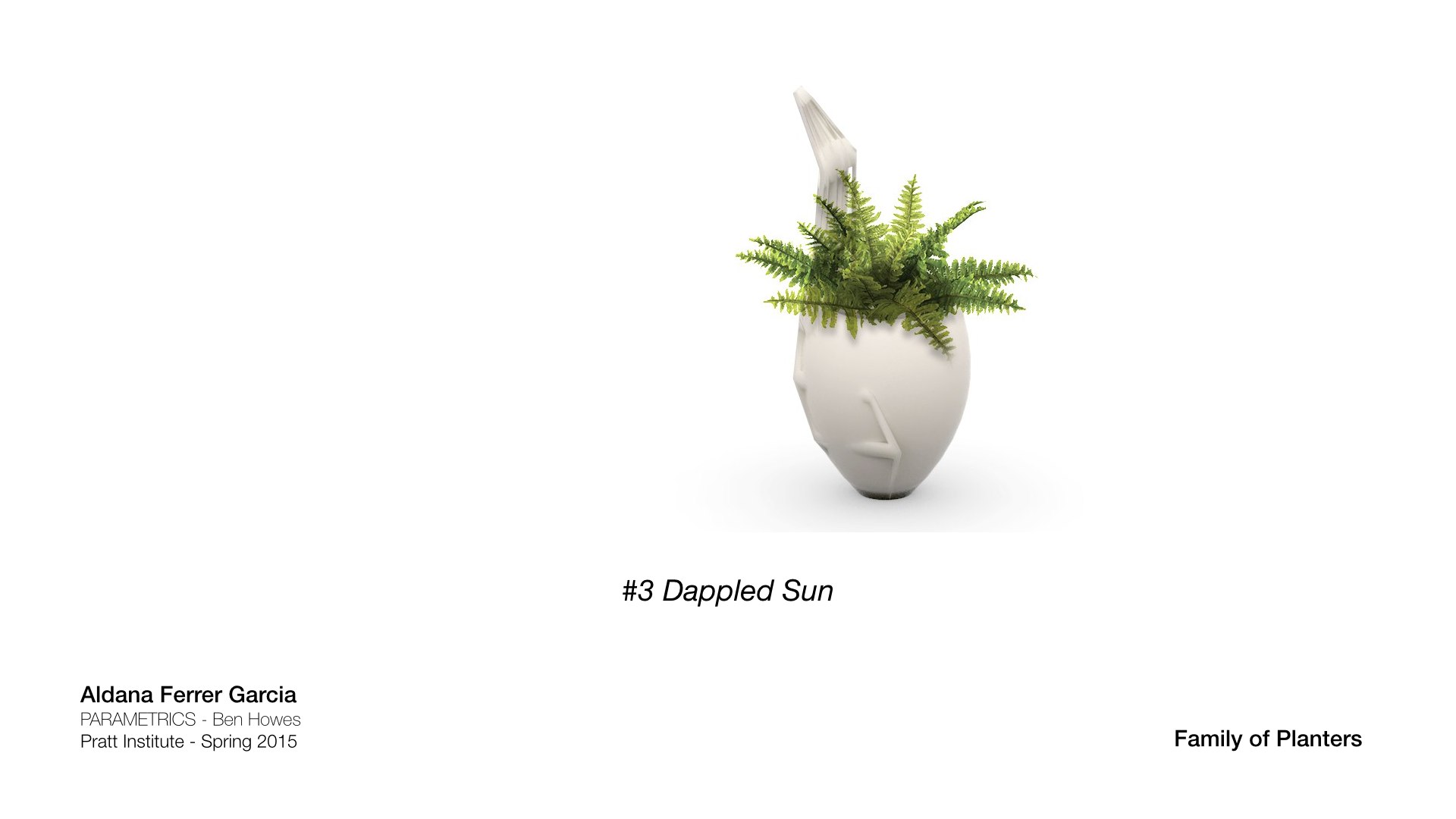

Family of Products.005b Family of Products.006 Family of Products.007 Family of Products.008 Family of Products.009 Family of Products.010 Family of Products.011 Family of Products.012 Family of Products.013 Family of Products.014 Family of Products.015 Family of Products.016 Family of Products.017 Family of Products.018 Family of Products.019 Family of Products.020 Family of Products.021 Family of Products.022 Family of Products.023 Family of Products.024

Family of Products_WindowPlanters

This family of products is a Planter Collection meant to be hanging next to a window. It serves different types of plants, according to different sun and shade needs. The product is composed of two parts: the “Body”, which holds the soil and plant roots; and the “Parasite”, which provides shade and structural support to the plant.   FamilyPlanters

Stalasso Table by PATH

Hi All!

I was looking for 3d printed ceramics+wood and found this very simple+beautiful table.. Cool thing is:

“A single ‘definition’ accommodates the generation of surface, deformation, material thickness, variability and tolerances and even cost of 3D printing. The same ‘definition’ could be used to generate any number of configurations and variations, with very little preparation for fabrication.” patharc.com/portfolio/stalasso-table

StalassoTable 01StalassoTable 02 StalassoTable 03

Jehs-Laub Lounge: Grasshopper Final Version

I’ve been struggling with the screen recordings, so here’s a low-tech version of my parameters in action:

JL_Presentation.006

I created the curves for the chair by referencing points from Rhino. I selected the top 3 points and connected a slider to them to change the x and z coordinates.

JL_Presentation.007

The bounding boxes that are referencing the geometry (“cushions”) onto the surface can change height by a number slider.

JL_Presentation.008

Those same bounding boxes can also be controlled by an attractor point, moving on the surface.

JL_Presentation.009

“Cushions” can change size in length….

JL_Presentation.010

…and in width. The original chair is a 3×5 grid.

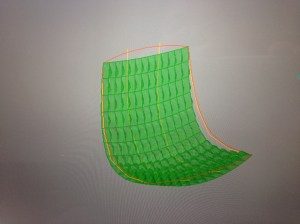

This is the original Jehs-Laub Lounge chair made in Grasshopper:

JL_Presentation.011

These are my 5 design proposals, including the Grasshopper parameters I used for each one:

JL_Presentation.012 JL_Presentation.013 JL_Presentation.014 JL_Presentation.015 JL_Presentation.016

Aldana Ferrer Garcia.-

Parametric Seating Part I= JEHS+LAUB LOUNGE CHAIR by Knoll

When the opportunity to develop a new lounge collection arose in 2007, Knoll Director of Design Benjamin Pardo immediately went to German designers Markus Jehs and Jürgen Laub. Pardo had hoped to work with Jehs + Laub for some time, thinking they were the right designers to further the legacy of Knoll lounge seating.

jehs+laub lounge chair leather and crome base
jehs+laub lounge chair
leather and crome base
jehs+laub lounge chair diagrams
jehs+laub lounge chair
diagrams

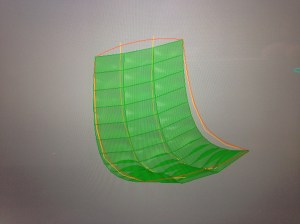

Surface Model in Rhino of the chair:

jehs+laub chair_model 01jehs+laub chair_model 02

Proposed Variables:

IMG_9740

IMG_9739
