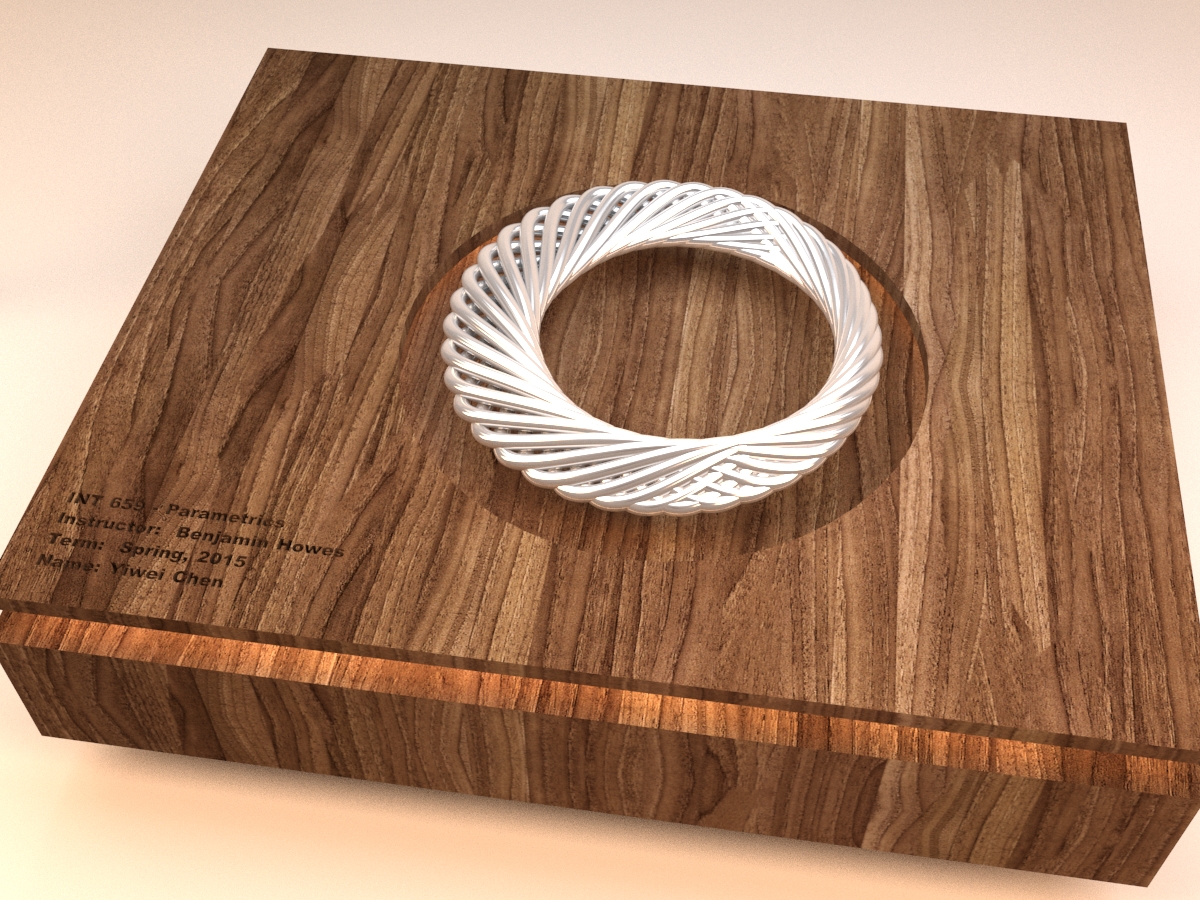

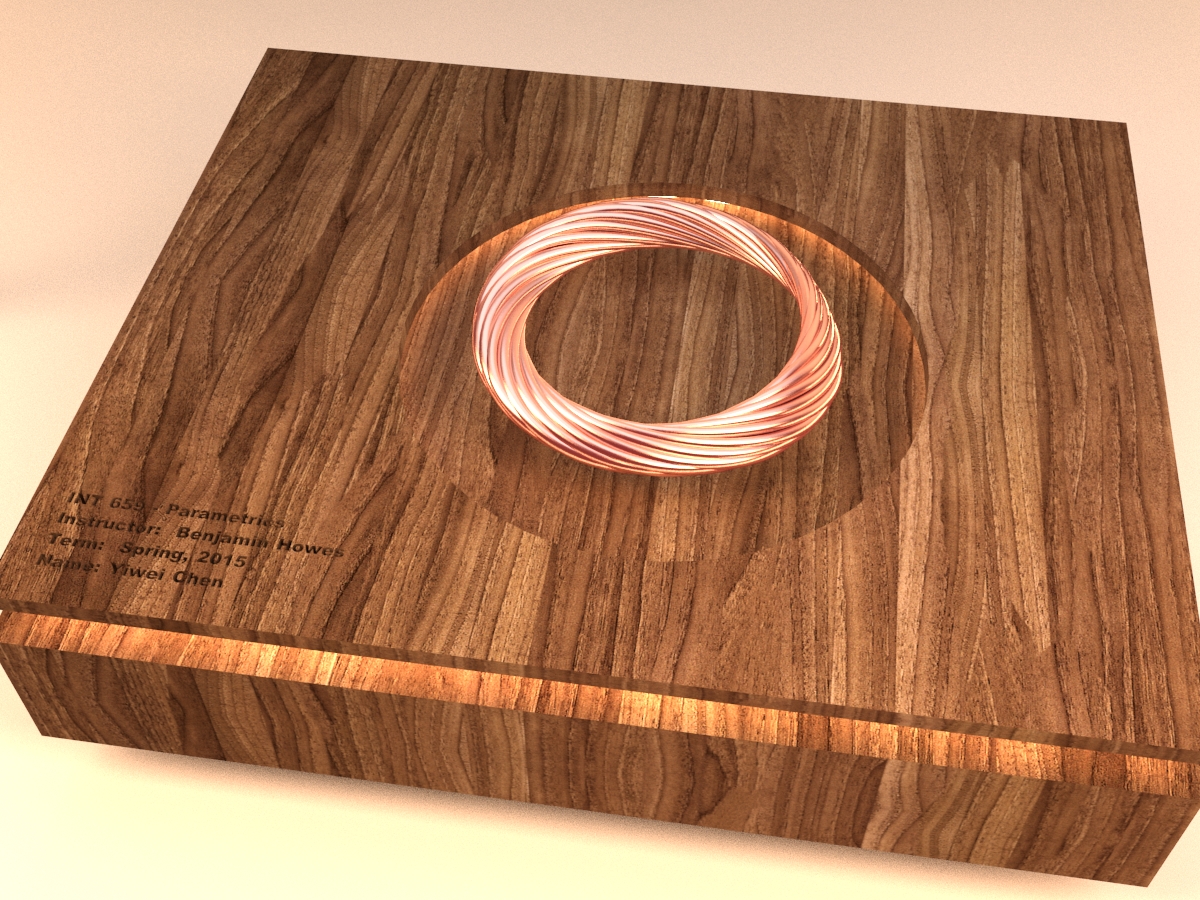

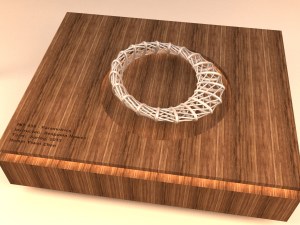

Product Families – Bracelets

The product family shears same design space in Grasshopper. All members come from the same definition. I was able to create multiple variations moving  sliders.

Deffinition

The project  aims to represent the frozen surfaces.How the surface changes the shape according to level of cold.  First shape I tried to make simple and created the gradient in between five family members. Starting from first it curves slowly and also grows as a shape. The structure inside the shape, introduces the ornament of the molecule in different density. I tried to create different chemical conditions fitting the shape of the bracelet.
Bracelet shape was created in Grasshopper,connected to Mesh settings, I can control density using the sliders..All the member of the family is printed by the 3D printer.

IMG_3870 IMG_3873_2

Screen Shot 2015-05-14 at 8.45.57 PMIMG_3860_2IMG_3857_2IMG_3853 copyIMG_3855_2 copy

IMG_3854_2

Final Product Families

The Product Families Assignment first got us thinking about a definition that was able to create multiple variations with only the moving of sliders. When we were asked to think about a possible object to create for this, I wanted to make sure to keep it simple, yet elegant. Keeping this in mind, I thought of the simplest forms that we are used to and concluded with parallelograms. Making vessels with varying number of points began to drive the definition, along with a few other factors.

COUNT_SLIDER   COUNT SLIDER

SHIFT_SLIDER   SHIFT SLIDER

SCALE_SLIDER   SCALE SLIDER

FINAL MODEL IMAGE   FINAL IMAGE

For full definitions, follow link below:

FINAL PRESENTATION

Family of Planters 3.0

Family of Planters is a parametrically designed line of planters.

Every plant has different sun or shading needs. People usually use half-shades and screens to protect outdoor plants as well as window pots. These elements are not always well designed, so I am proposing a system where the shade is incorporated to the planter. These products will accommodate 5 different shade requirements for various plant species.

Here you can watch the video of the grasshopper file definition and take a look at the presentation. Enjoy!

Aldana.-

Family of Products.005

Family of Products.005b Family of Products.006 Family of Products.007 Family of Products.008 Family of Products.009 Family of Products.010 Family of Products.011 Family of Products.012 Family of Products.013 Family of Products.014 Family of Products.015 Family of Products.016 Family of Products.017 Family of Products.018 Family of Products.019 Family of Products.020 Family of Products.021 Family of Products.022 Family of Products.023 Family of Products.024
