2D interiors project

As the first exercise we did by grasshopper, it’s a tough process to understand each component and use skillfully.

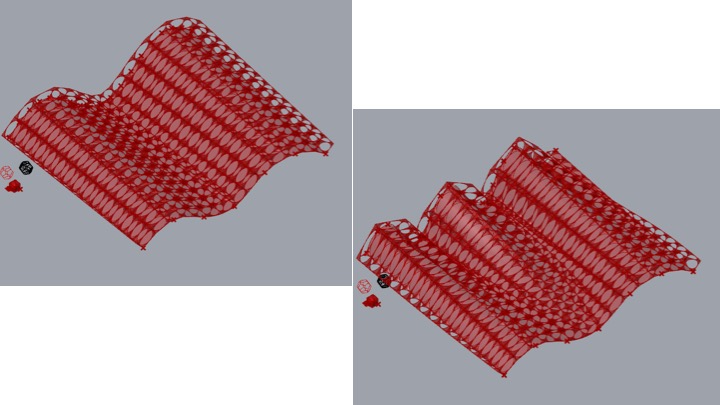

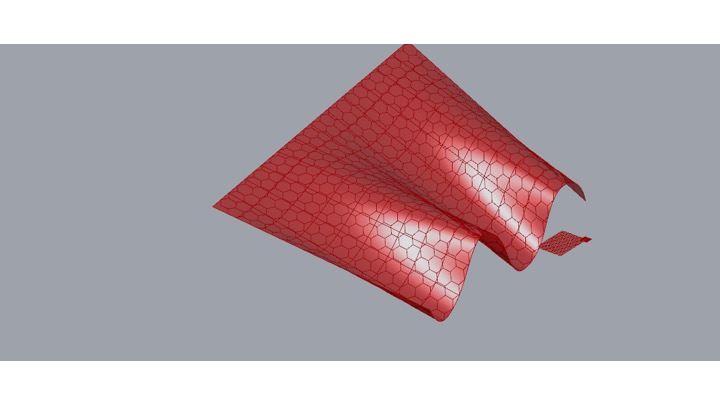

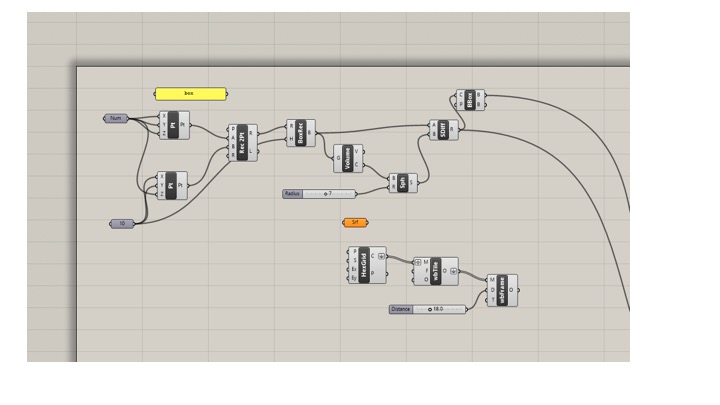

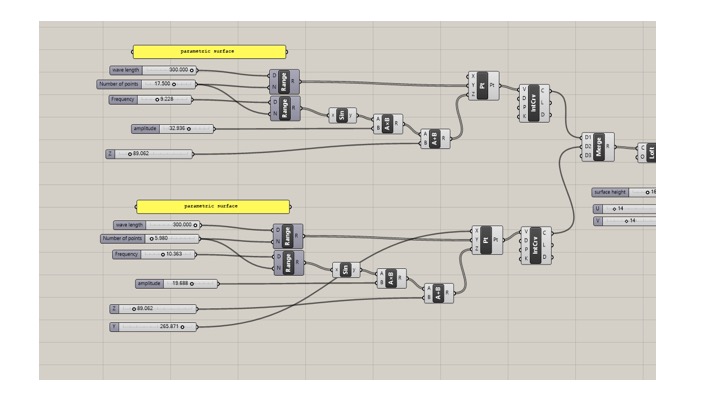

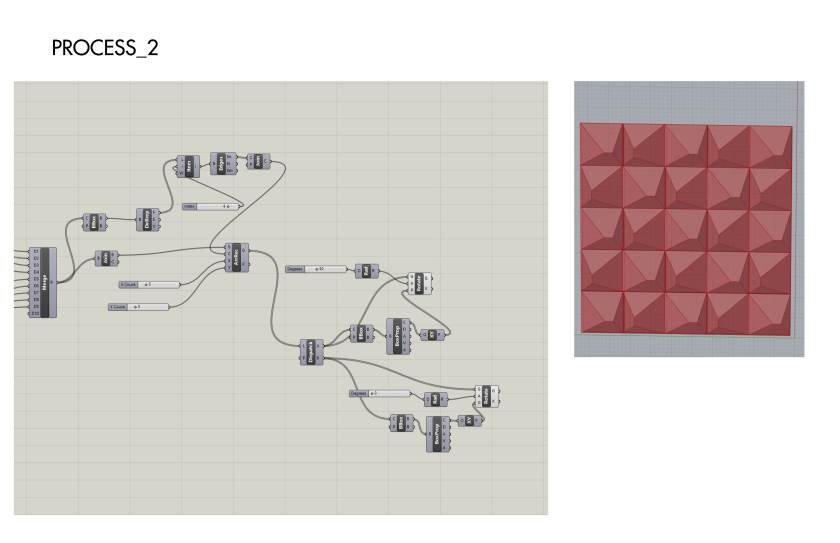

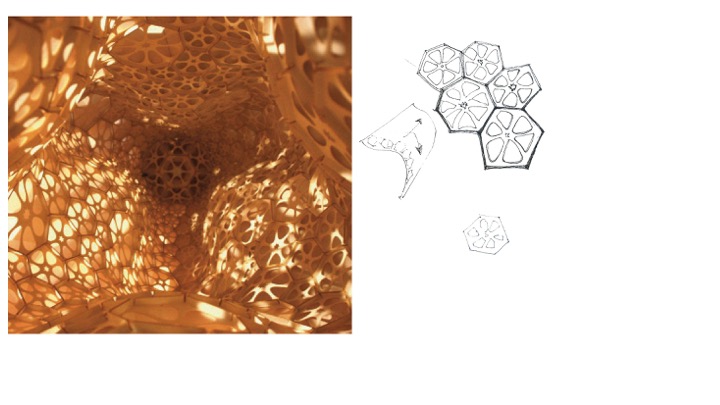

The precedent I followed is a 3D surface, it also can be used as a wall pattern. In the beginning, I wanted to make a curved surface with this hexagon and hollow out the circle pattern.  Therefore, my first test used the morph component to hollow out a circle. The first step is making two polygons and boolean difference. The second step is making a curved surface which I can control the fluctuation frequency.

This method works but I failed to get the hexagon shape. The shapes I can get are very basic polygons such as cones and cubes. However, it’s difficult to make a hexahedron.

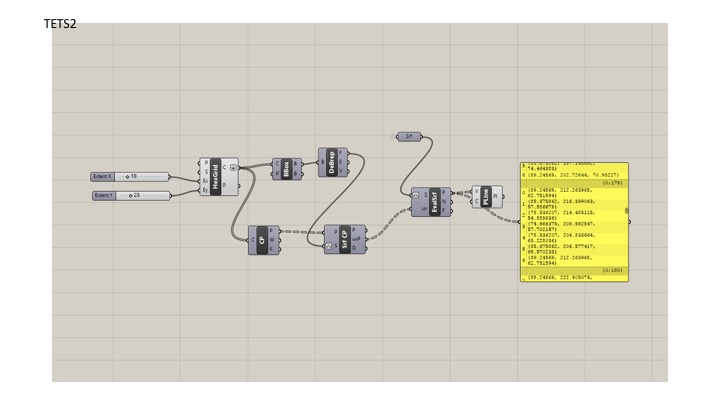

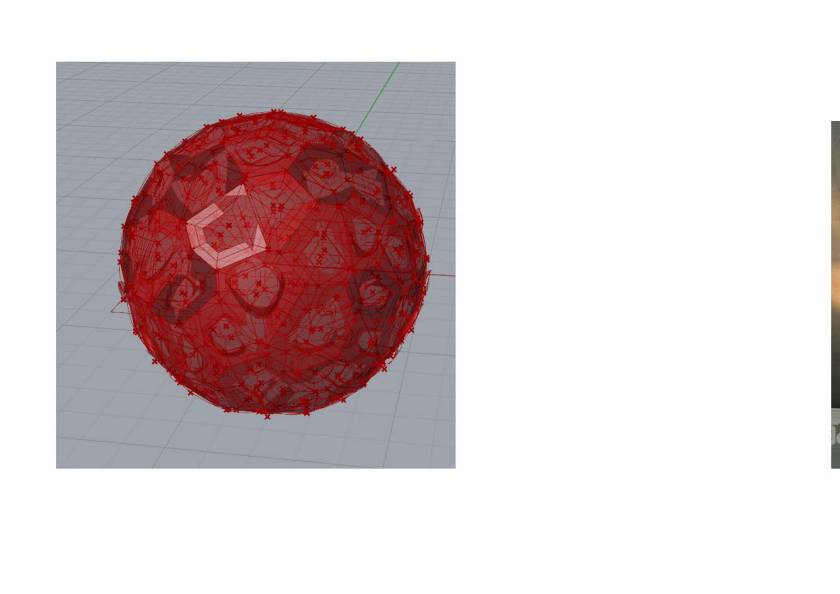

My second test used ‘Project’ so firstly I used the same surface,  but I tried to project the hexagon shape on the surface. However, I don’t know how to get the hollow circles in the hexagon frame.

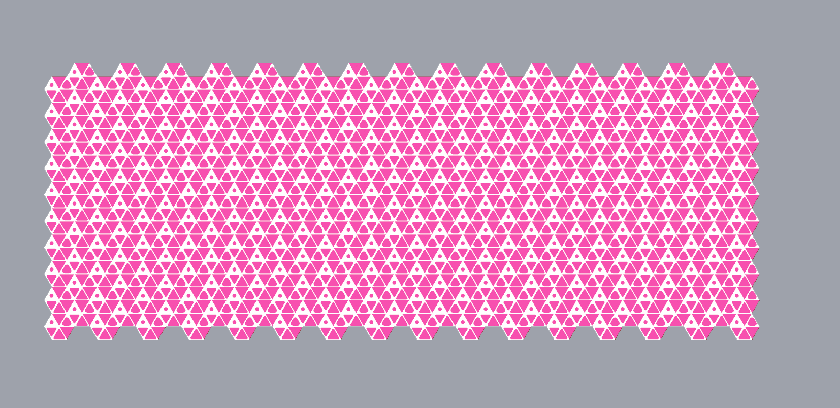

The third test I used a flat surface… I divide the surface into small grids and get hexagon shape through creating Points and Centrepoint and connect them with lines. Thus I can get the small triangle surfaces. Then I used Offset and get the hollow circle. I also can change their sizes by changing the distance. The next step is using Scale and Move to change the size and position of some ‘special hexagons’ and I used Swatch to change colors.

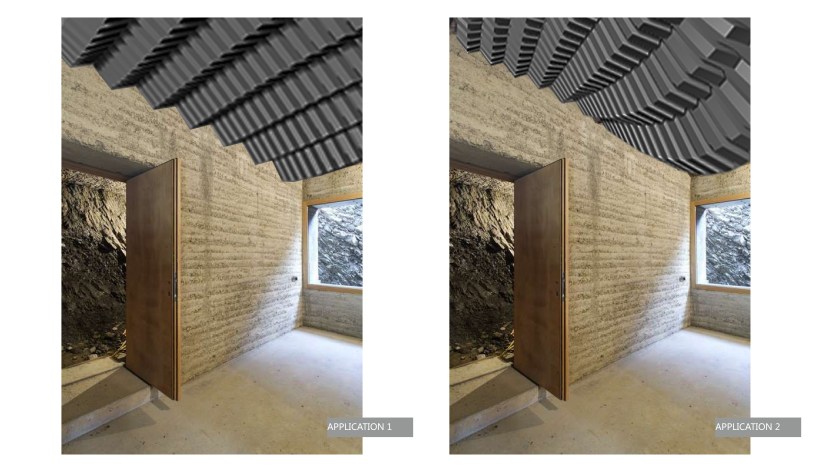

The 2D interior project I designed is a ceiling system project. The material of the ceiling is traditional Chinese brick. My intent is to make each piles of the bricks start to rotate and do series of movement in order to create more amazing ceiling structure. I believe this design will allow visitors have different experiences in both horizontal and vertical directions.

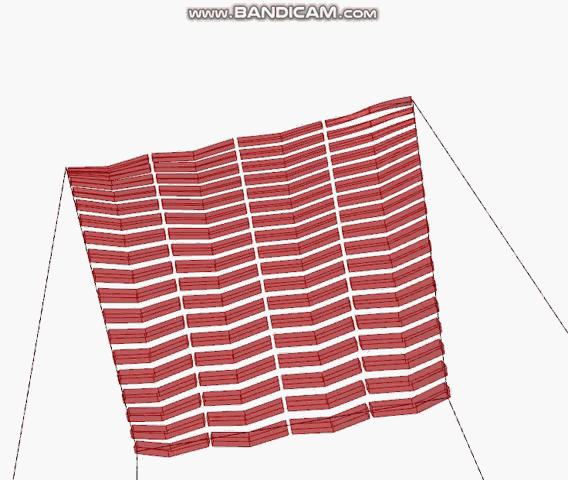

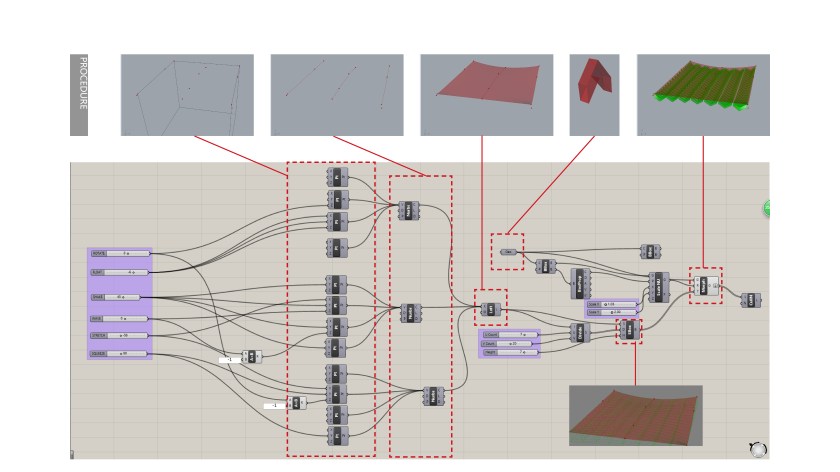

In the final project, I set up 3 lines, which are consisted of 12 x-y-z points, and then I loft these three lines to build a surface. I also create a geometry and morph this box to the existing surface to build a group of boxes. However the surface moves, the boxes will move along with the surface which of course is connected with the 12 points. Then, the twisted piles of boxes start to be same as the geometry in my drawings.

I also build the surface boxes to surround each of the geometry to create some spaces like the real bricks do.

The geometry I create has thousands of alterations because of the different shapes of the surfaces.

I learned a lot from this lecture.

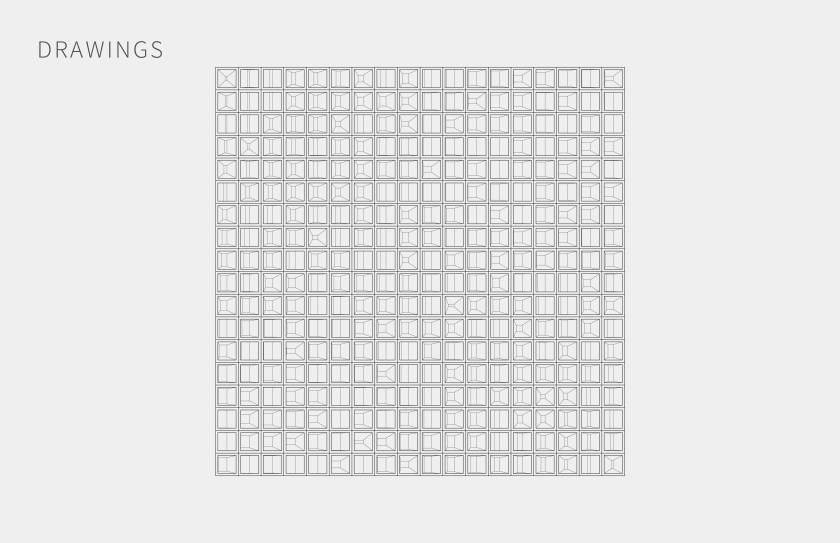

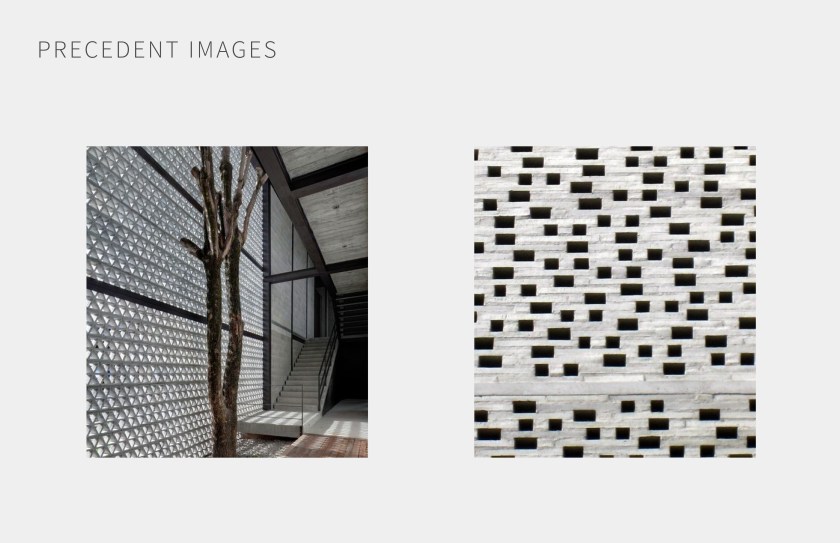

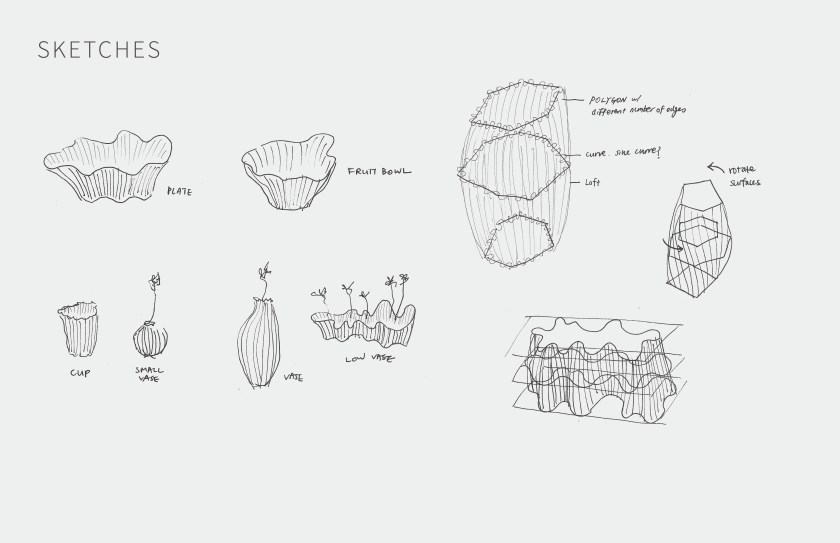

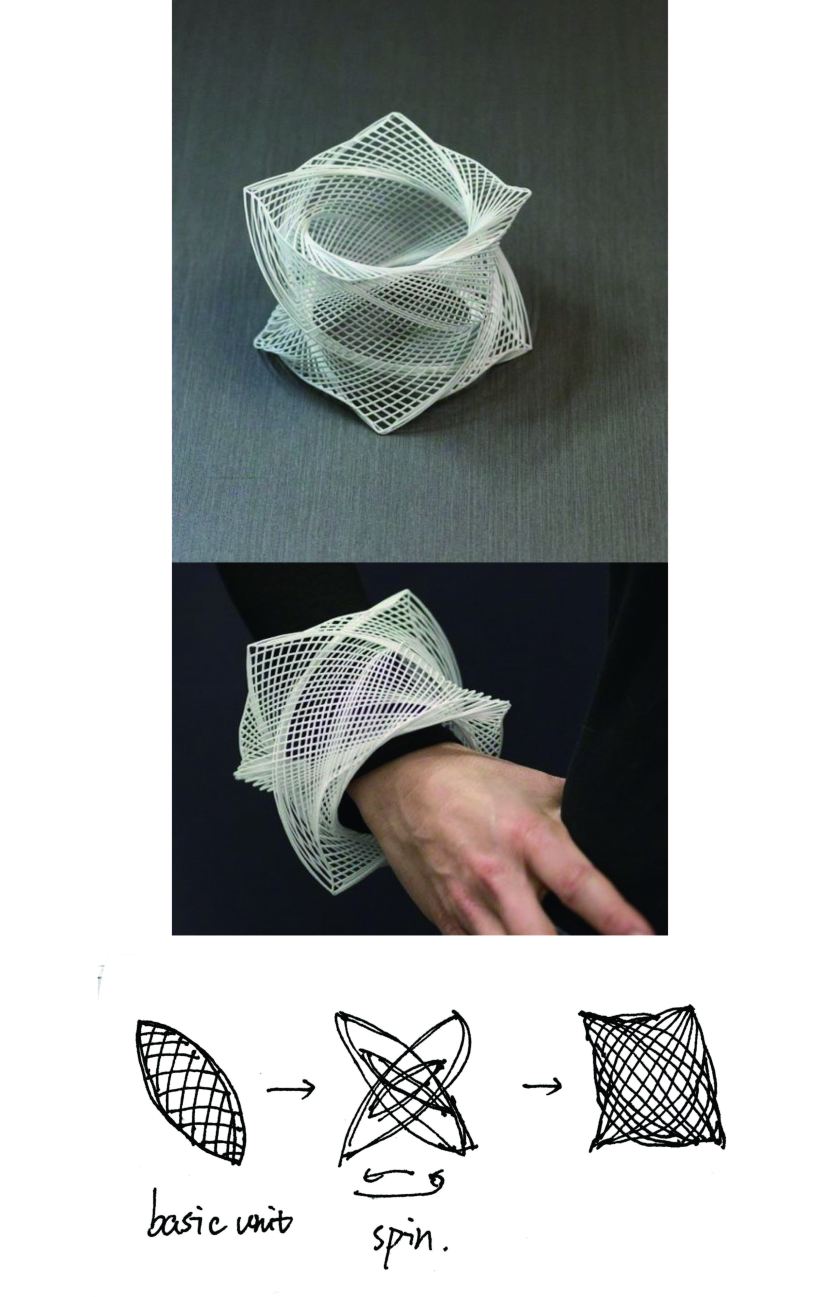

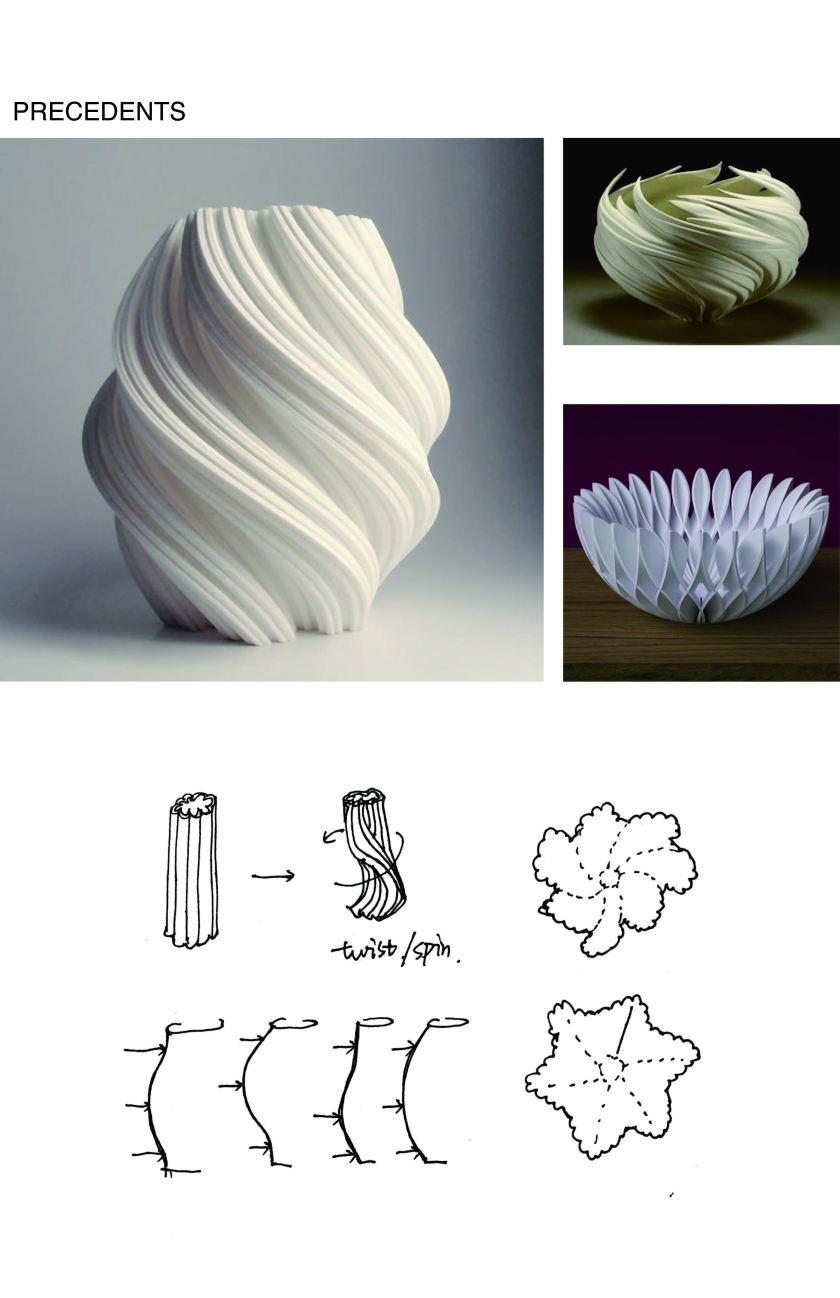

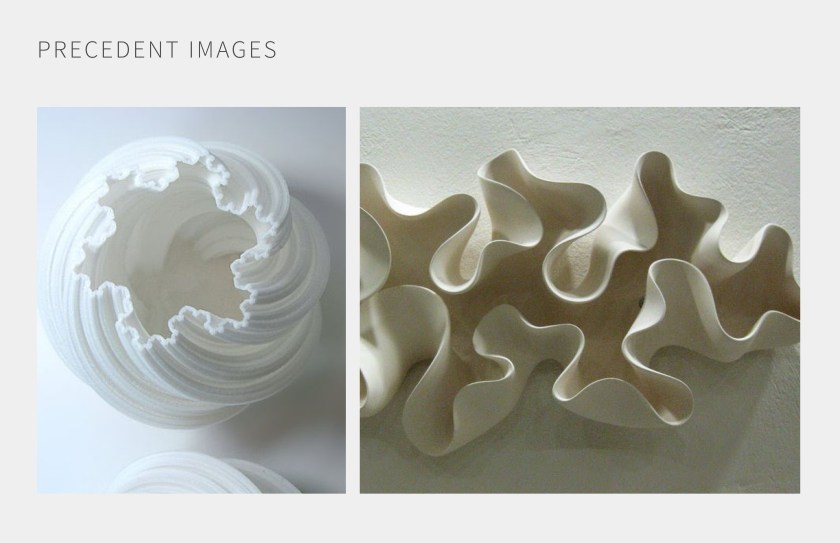

PRECEDENT AND DRAWINGS

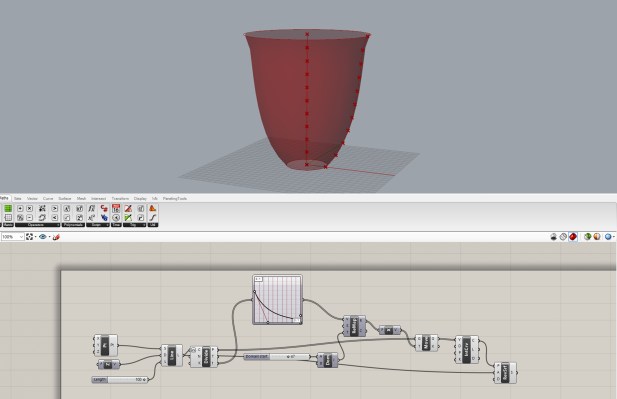

PARAMETERS

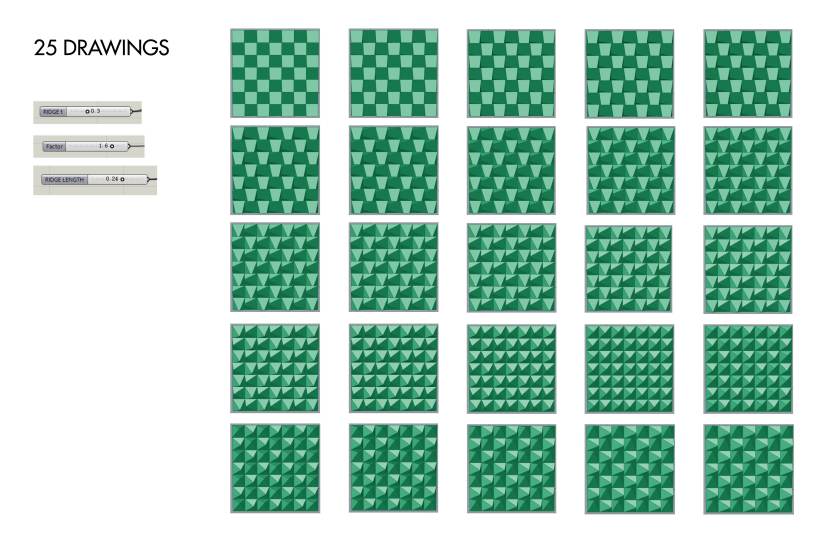

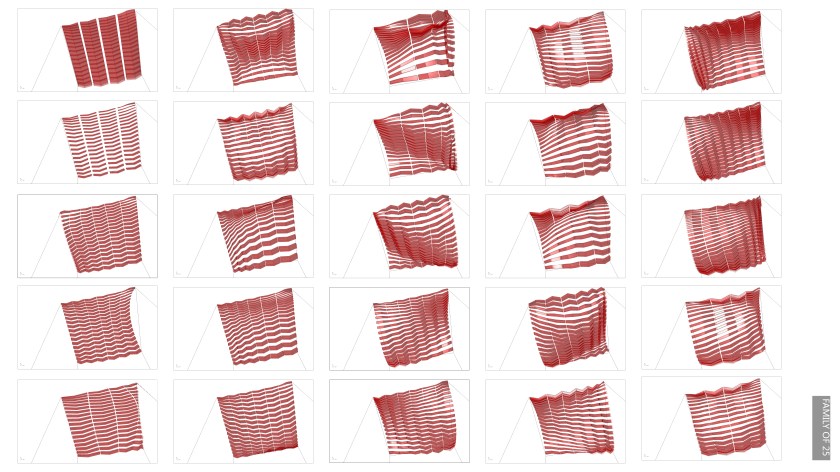

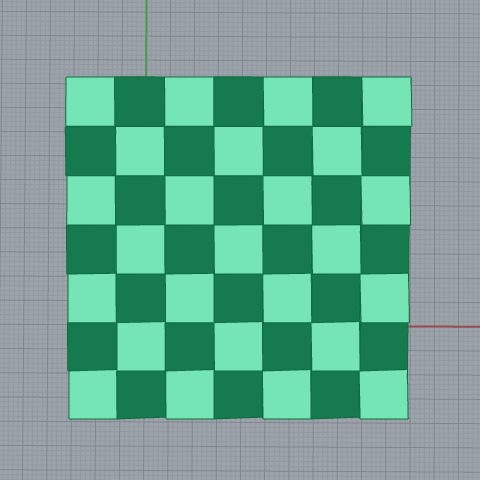

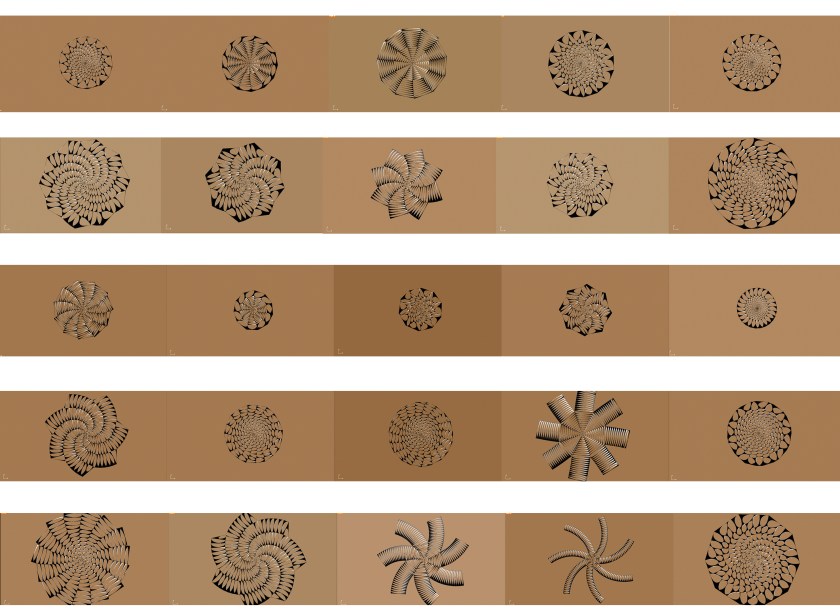

This is the gif of the family of 25. And below are the 6 functions.



ROTATE

FLOAT

SHAKE

WAVE

STRETCH

SQUEEZE

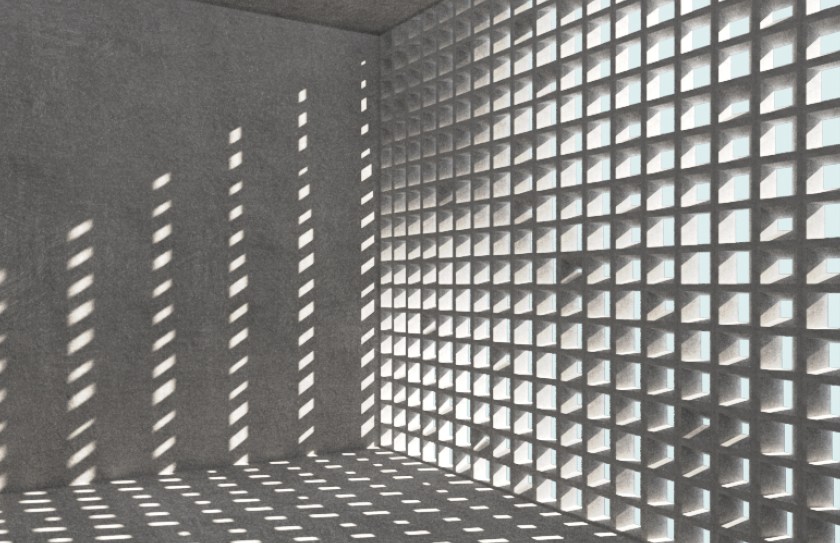

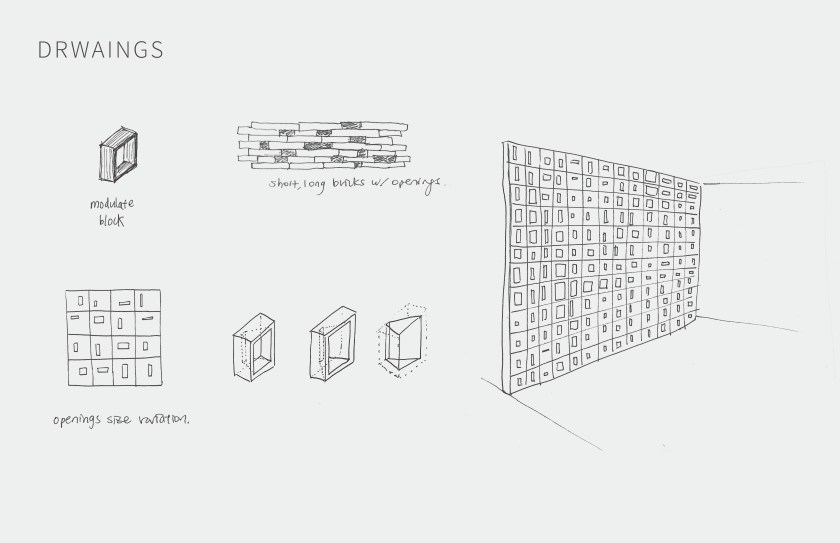

For this 2D interior project, I have developed a wall system that interacts with daylight and the interior space. The wall system is intended to be a screen that let light penetrates through to create patterns of light and shadow. The different angled faces of the wall would also subtly create different shades. The wall has seemingly random and rectangular apertures that brings some lives into space. It is made of made of modular sizes of blocks, which compensated the randomness of the apertures and sets a uniform frame to the system.

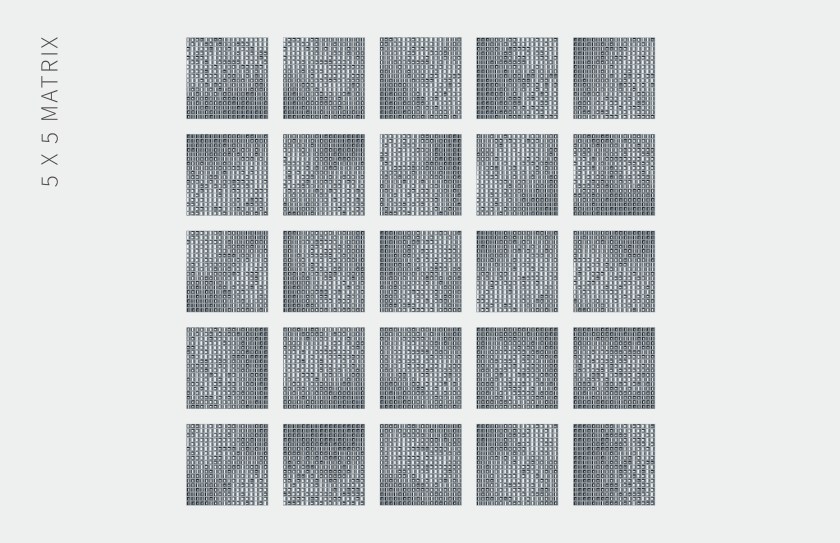

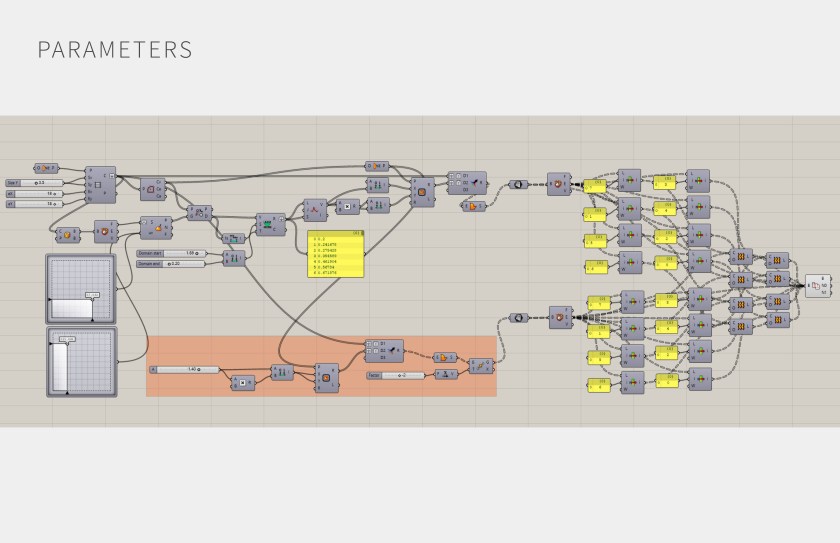

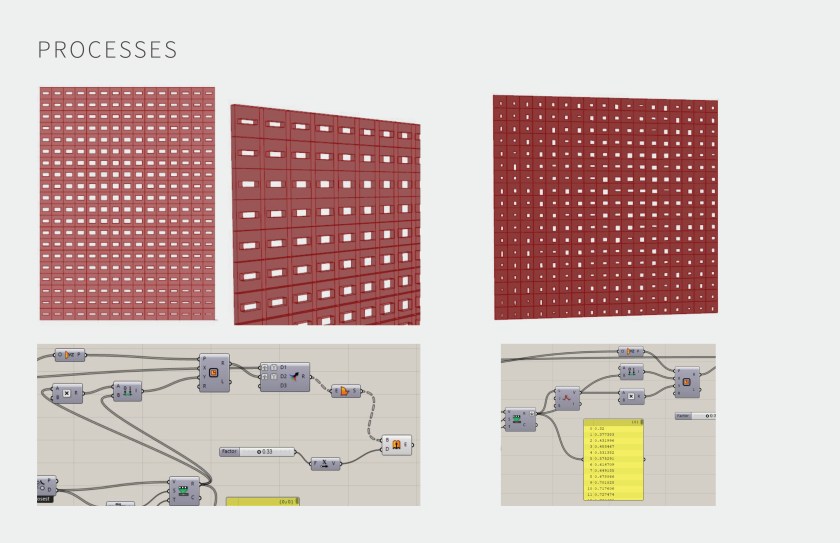

To design the wall system, I first created a rectangular grid. I united the whole grid as a surface and provide input for setting its surface centers. The input is the attraction points that are one of the determinants of the general sizes of apertures. I then set up a domain and remapped the numbers from the center of each rectangle to provide input values for the specific sizes of apertures. Since I wanted the apertures to be more vertical, I constructed another domain so that the value runs from negative to positive, making the aperture expanding both sides from the center. I also added a jitter function to shuffle the sizes of apertures a bit to create a more organic look. The second rectangles in the grids are combined with the grid to create surfaces with openings. I repeated this process and created another panel of surfaces with uniform apertures. At last, I pull the lists of individual edges, matching them accordingly, to loft the surfaces between the two panels to create volume and angled faces between apertures.

Throughout the process of making, I have better understood the logic of visual programming and how objects are formed. They also have information to be extracted and used towards other functions. The project allowed me to comprehend visually of how each component is a tool for creating, retrieving or changing parameters. I would like to further work on the ideas behind inputs so that objects respond to specific ideas or issues.

Design Explorer Link

http://tt-acm.github.io/DesignExplorer/

Get Data:

https://drive.google.com/open?id=1-DlgY7NxcMrqW7lTdOYmVgbHlR92KZMC
