Privacy Screen

Final production.

The screens are intended to have a certain interaction with users, the different kinds of interactions can be altered and controlled by the alternating the level of the overlapping layers.

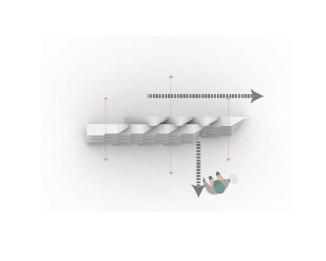

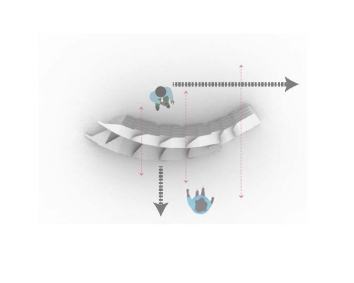

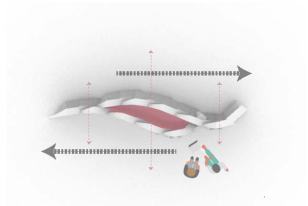

plan diagram3.jpgplan diagram 2.jpgplan diagram.jpgThe control of the moving Y and X Axises.

The difficulty that I faced was the way to notch three pieces of planes together, the problem with which plane goes on top of which plane will make a better joint instead of creating more tear.


At the point where I solved the notching system, the issue of the weight of the paper comes at the end of the project. In the digital renderings, the folding planes stay at a 90-degree angle. However, in the constructing stage of the project, I realized that it is extremely to hold the plane at a perfect angle. And if one base layer is not at the right angle, the layer above will be at the wrong opening angle as well. Yes, it was a real challenge.

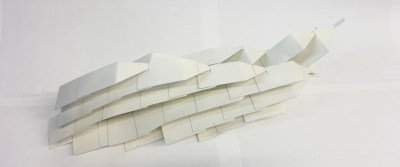

detail2.jpgdetail 1.jpgdetail 3.JPG
